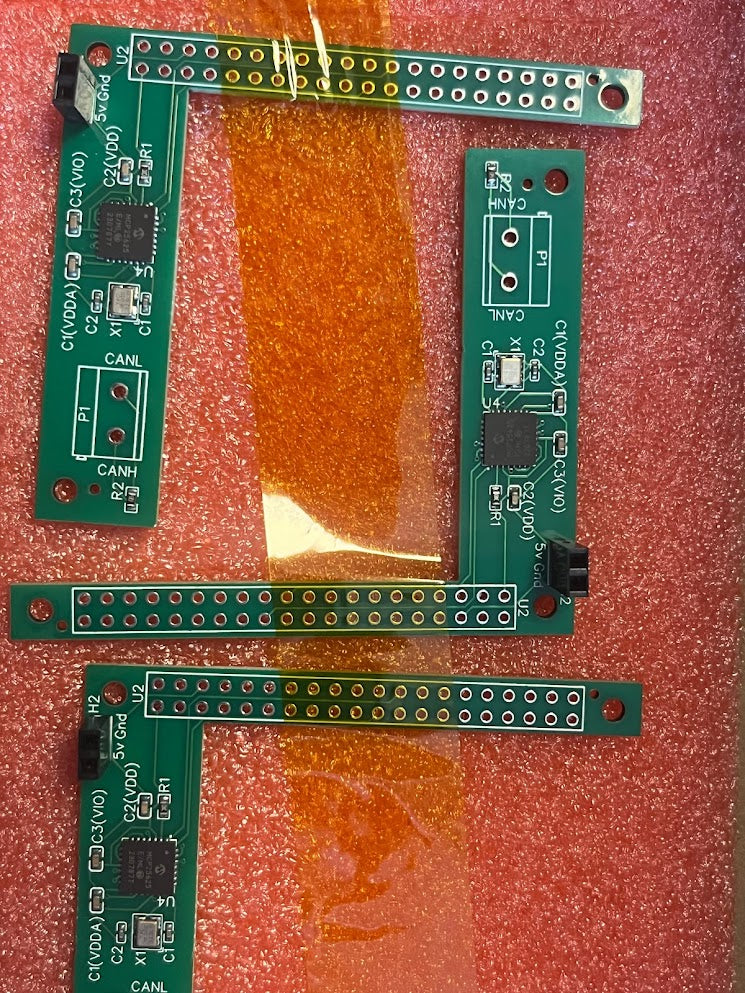

Raspberry Pi CAN bus GPIO board/hat

This PCB connects to the GPIO pins of a Raspberry Pi to allow CAN bus communication

It is tested on the Pi 5 but should work for all previous Pi models with the same GPIO pinout

It is designed specifically to leave space for the active cooler for the Pi 5

You can either solder it straight to the GPIO pins or use some extended pin headers if you are using the active cooler - to lift it away from that

It is set up for screw terminals for the CAN bus pins if you want to add that but you can solder directly to the board
